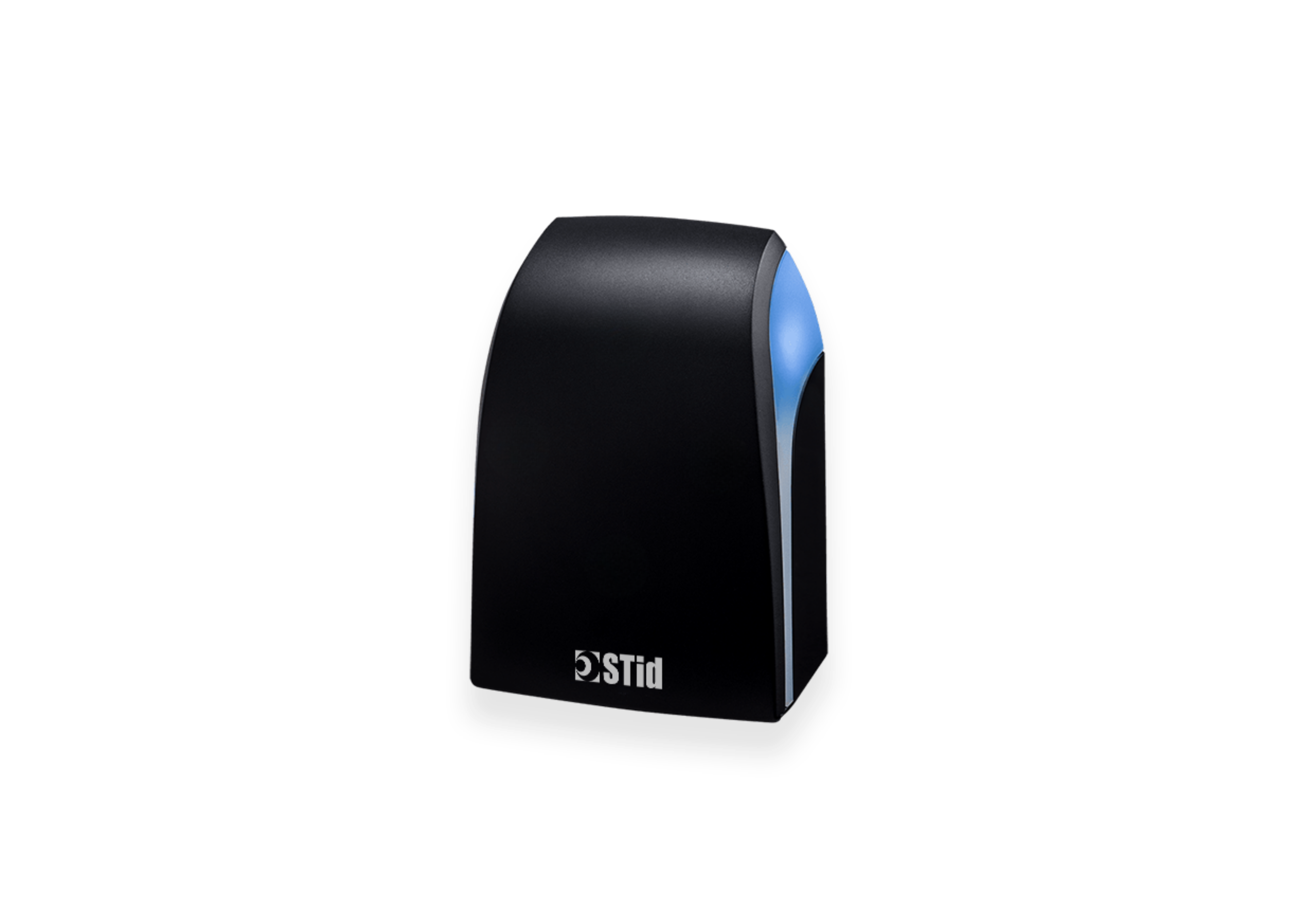

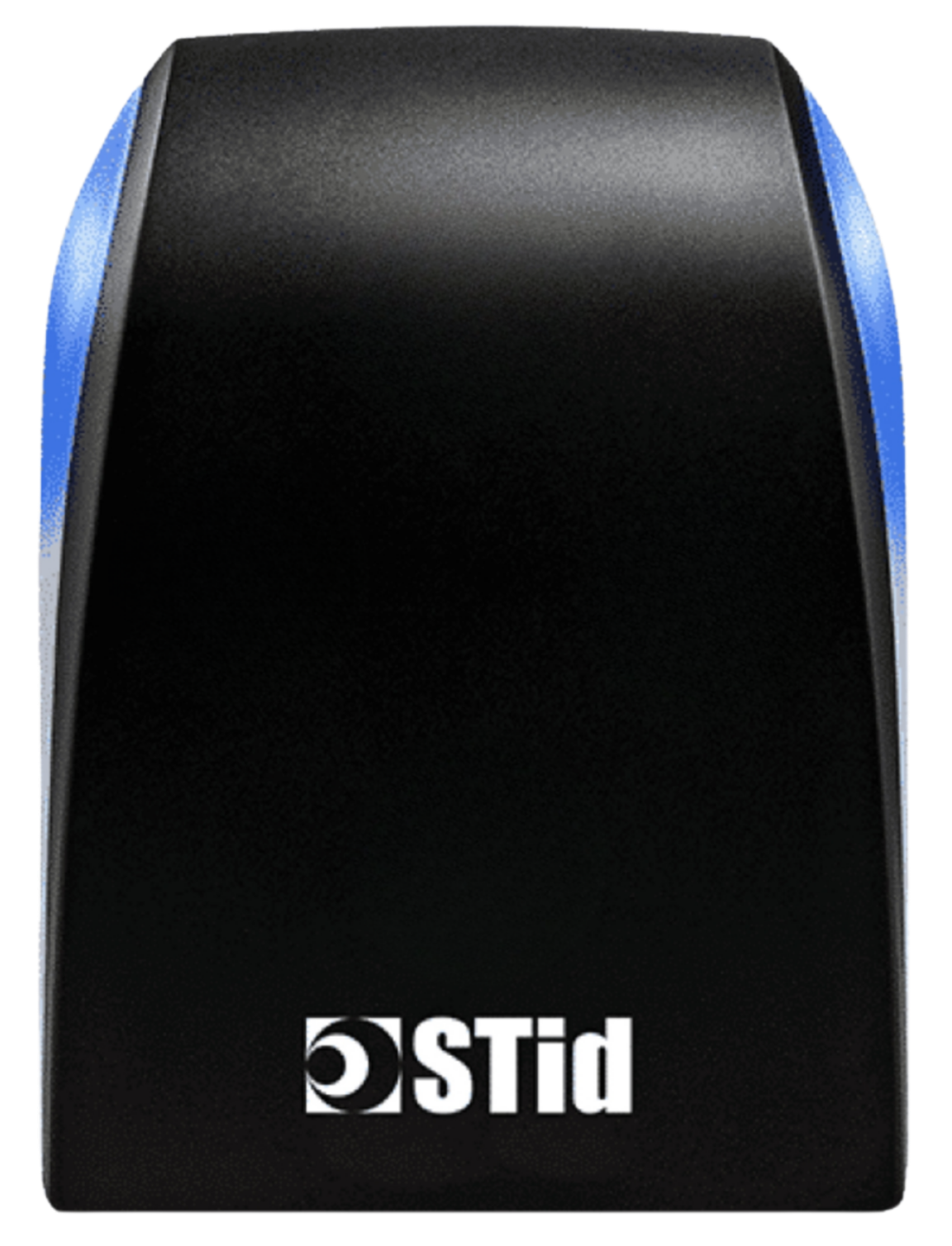

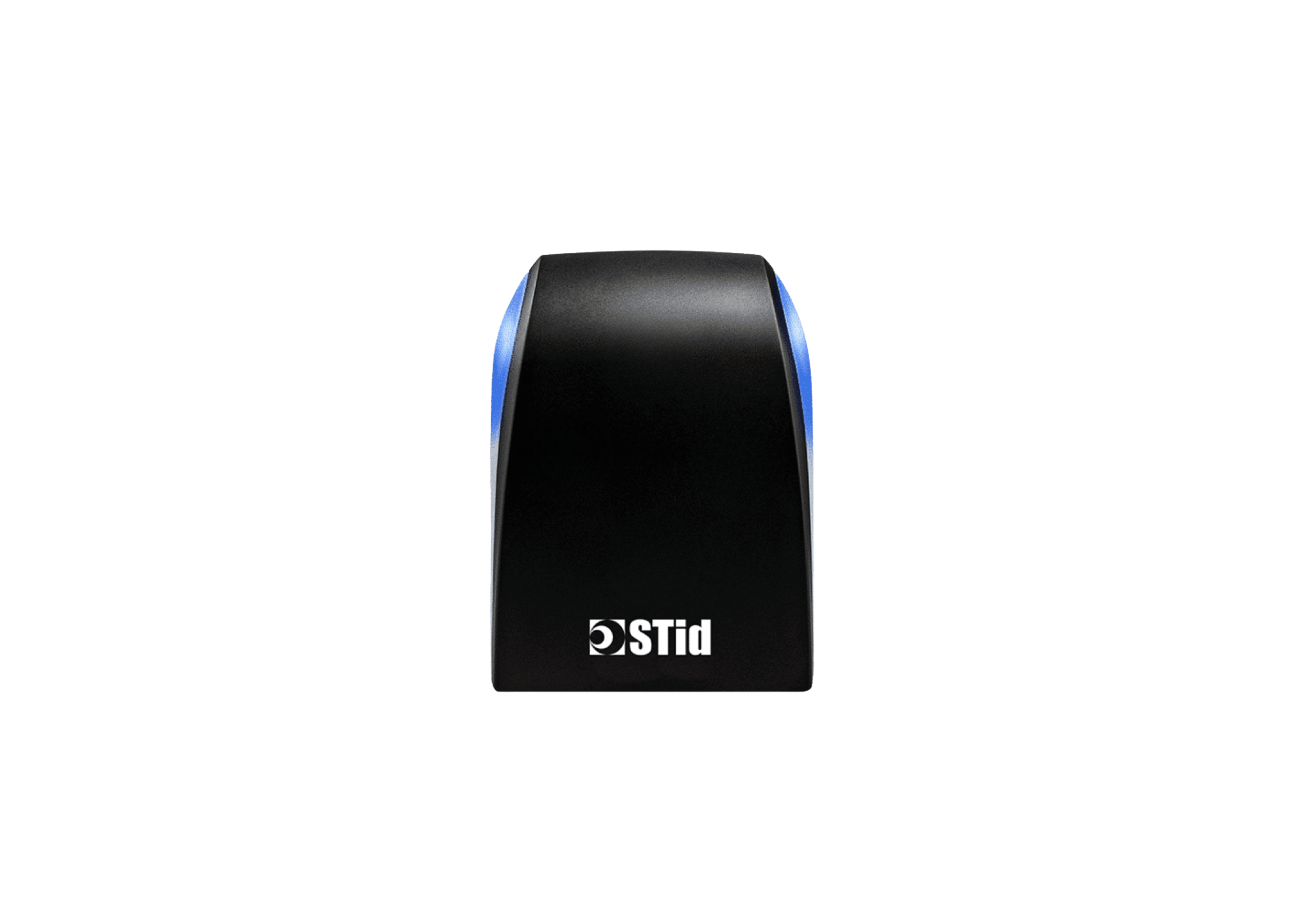

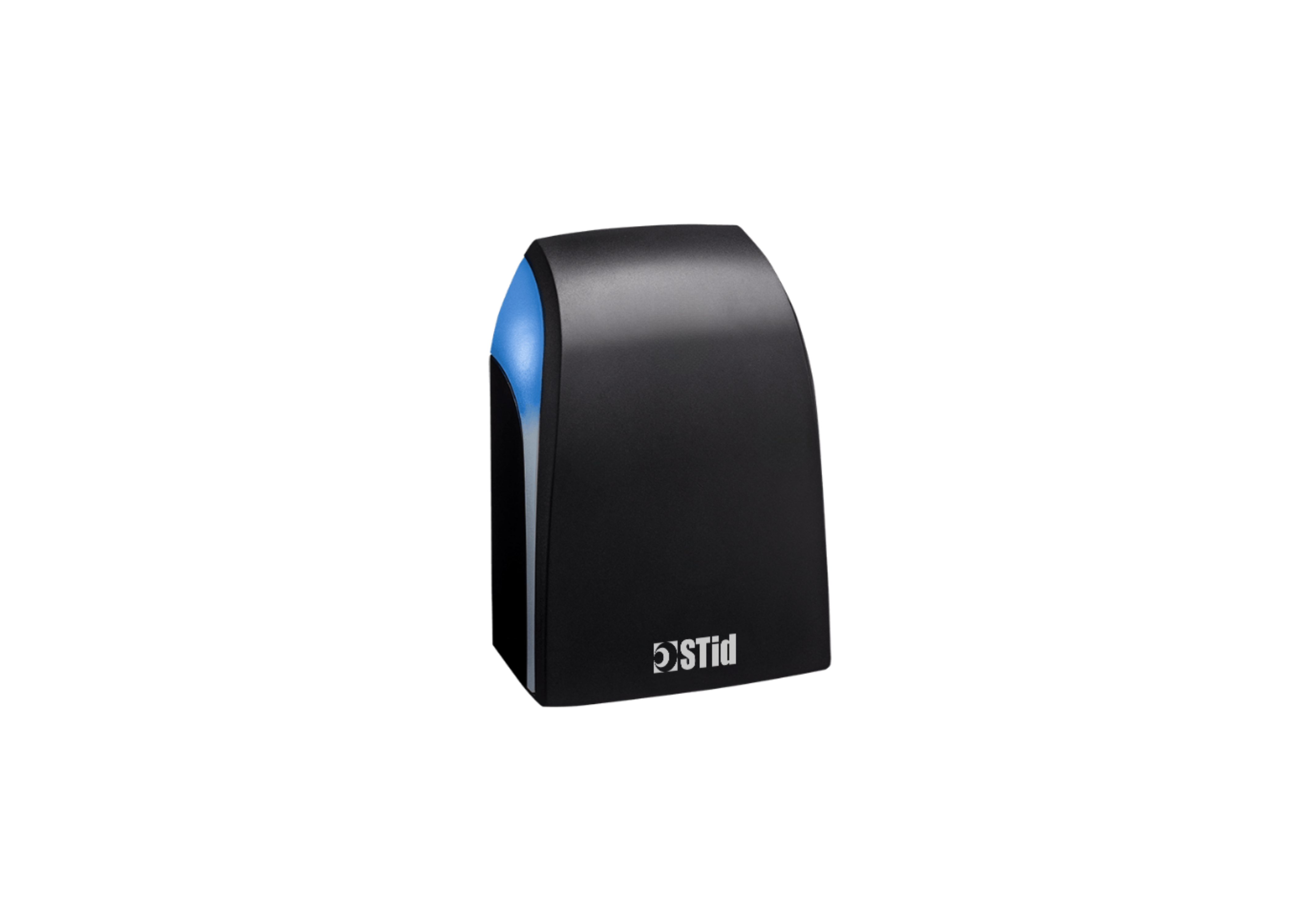

Arcs-a
13.56 MHz: ISO14443 A and B, ISO18092
MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE® DESFire® 256, EV1, EV2 & EV3, NFC (HCE)
Key features
Operating Frequency / Standards
DATASHEETS.ARCS-A.FURTHER_INFO.1.DESCRIPTION
Compatible Identifiers
MIFARE® Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE®, DESFire® 256, EV1, EV2 & EV3, NFC (HCE)
Functions
Protocol-controlled operation (identifier read/write, feedback)
Communication Interface / Protocol
SSCP® v2 high-security communication protocol (RS485)
Reading Distance
Up to 6 cm with a MIFARE® DESFire® EV2 card
Visual Feedback
2 RGB LEDs - 360 colors, software configurable
Audio Feedback
Built-in buzzer
Power Consumption / Power Supply
130 mA/12 VDC maximum / 7 VDC to 28 VDC
Connection
with detachable terminal block
Housing Material
ABS-PC UL-V0 (black) / ASA-PC-UL-V0 UV (white)
Dimensions (H x W x D)
106.6 x 80 x 25.7 mm
Operating Temperature
-30°C to +70°C
Tamper Switch
Accelerometer-based tamper sensor
IP and Mechanical Protection
IP65-rated - equipped with protective coating compliant with EN 61086 weather-, water-, and dust-resistant / Humidity: 0 - 95% / IK10 certified vandal-resistant, reinforced housing
Mounting
Wall-mountable on all types of surfaces, including metal.
Certifications
CE (Europe), FCC (USA), IC (Canada), UKCA (United Kingdom), and UL
Manufacturer Marking
ARC-W33-A/PH5-7AD/y (where y is the housing color (1: black - 2: white))
